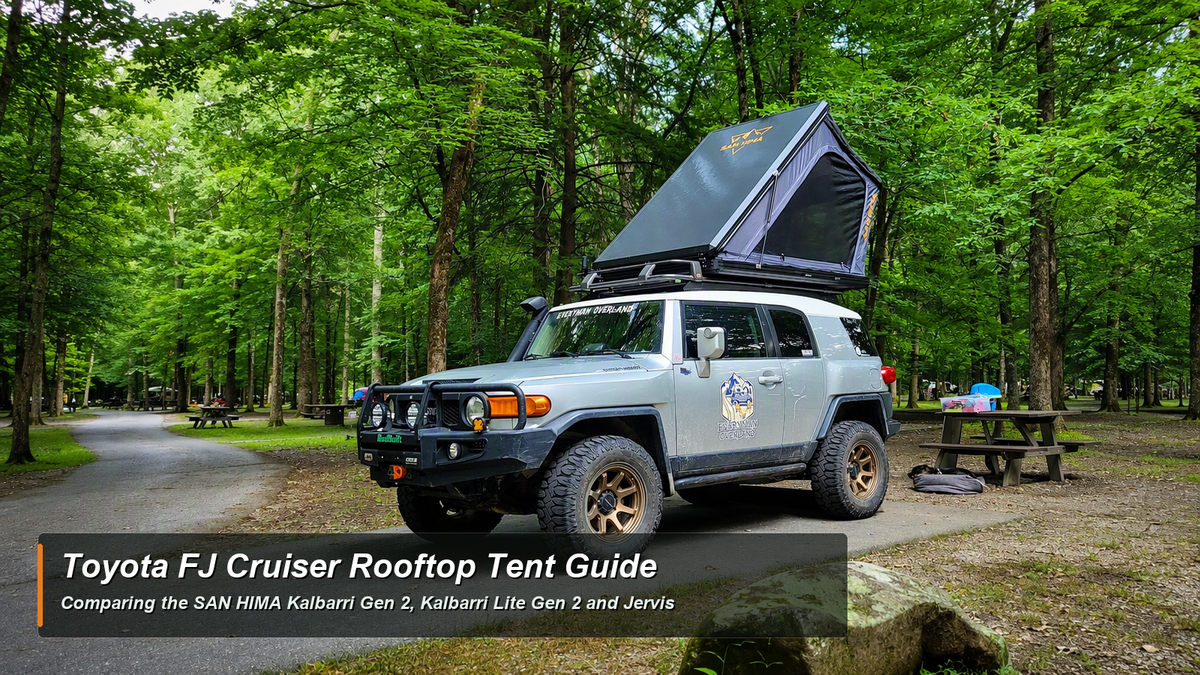

Toyota FJ Cruiser Rooftop Tent Guide: SAN HIMA Kalbarri Gen 2 vs Lite Gen 2 vs Jervis

Can you put a rooftop tent on a Toyota FJ Cruiser? This Australian fitment guide explains roof loads, rack selection, mounting rails, clearance, off-road use and the differences between the SAN HIMA Kalbarri Gen 2, Kalbarri Lite Gen 2 and Jervis hard-shell rooftop tents.

The Toyota FJ Cruiser’s distinctive shape and 4WD identity make it popular for camping and touring. Its compact body can work well with a rooftop tent, but fitment is more than physical roof space.

This guide compares three Australian SAN HIMA hard-shell options: the SAN HIMA Kalbarri Gen 2, SAN HIMA Kalbarri Lite Gen 2 and SAN HIMA Jervis. All three remain conditional product options, not universal compatibility approvals.

Can You Put a Rooftop Tent on a Toyota FJ Cruiser?

Yes, a Toyota FJ Cruiser can be considered for a rooftop tent when the exact vehicle, roof rack, mounting hardware and RTT meet the applicable requirements. The answer depends on the FJ Cruiser’s model and roof configuration, the rack or crossbar system, the complete moving roof load, the tent’s mounting layout and the way the vehicle will be driven.

Toyota Australia’s FJ Cruiser owner-manual archive identifies the Australian GSJ15R model and covers a build period from October 2010 to August 2016. Imported FJ Cruisers and vehicles with different roof equipment may not have the same documentation or mounting arrangement. Owners should check the manual and vehicle information for the exact FJ Cruiser rather than applying a figure found for another market or model year.

The most important distinction is between the vehicle roof allowance and the rack rating. A rack manufacturer may publish a dynamic, static or off-road capacity for one specific rack configuration, but that number does not automatically increase the Toyota vehicle limit. The FJ Cruiser rooftop tent, rack, mounting hardware and other roof equipment must be assessed as one load path.

If the exact vehicle or rack documentation is unclear, the safe conclusion is conditional: the RTT may suit the FJ Cruiser, but compatibility should be confirmed before installation or purchase.

What Should You Check Before Installing a Rooftop Tent on an FJ Cruiser?

Before choosing an RTT, check the vehicle documentation, roof system, tent specifications and installation together. Do not decide from RTT weight alone.

Dynamic Roof Load

Dynamic roof load is the load carried while the FJ Cruiser is moving. It includes the RTT, rack, crossbars, mounting hardware and other equipment that remains attached during travel. The Kalbarri Gen 2 is listed at 73 kg without the ladder and 78.5 kg with it; the Kalbarri Lite Gen 2 at 60.5 kg without the ladder and 65.5 kg with it; and the Jervis at 56.5 kg. These are product weights, not FJ Cruiser approvals, so add the rack and accessories before comparing limits.

Static Roof Load

Static roof load is the load supported when the vehicle is stationary. It may include the open tent, rack, mounting hardware, bedding and occupants, depending on how the vehicle and rack manufacturers define their ratings. A static figure is not permission to exceed the dynamic limit while driving.

Roof Rack and Crossbar Capacity

The FJ Cruiser roof rack must be designed for the exact vehicle and suitable for the intended RTT. Check the rack weight, dynamic rating, static rating, off-road restrictions, mounting feet, platform or bar arrangement and the load rating for the actual configuration.

For example, an Australian Offroad Animal Scout rack listing for the 2011–2016 FJ Cruiser states 120 kg dynamic, 320 kg static, 32 kg rack weight and 80 kg off-road rating. These figures apply only to that product and installation. Rhino-Rack’s FJ Cruiser fitting chart similarly instructs owners to use the lower of the vehicle manufacturer’s roof allowance and the rack-system limit.

Crossbar Spacing and RTT Rails

Measure the distance between the FJ Cruiser rack bars and compare it with the RTT mounting rails. The Kalbarri Gen 2 lists 74.5 cm mounting-rail spacing. The Jervis lists 63.5 cm. These dimensions are useful fitment inputs, but they do not prove that either tent will align with every FJ Cruiser rack.

Confirm that the bars sit under the approved support areas and that the rack permits the intended bar spread. Do not drill the RTT, move brackets outside approved positions or create unapproved spacers.

Mounting Hardware Compatibility

The mounting hardware must match the RTT rails, crossbar profile, platform channel or backbone system. Check the plate position, fastener access and manufacturer’s tightening instructions; a universal-looking plate is not automatically suitable for every rack or tent.

After installation, check for movement, rubbing, loose fasteners or unusual noise. Recheck the system after the first short drive.

Overall Vehicle Height

Measure the finished FJ Cruiser at its highest point. The final height includes the vehicle, rack, platform or crossbars, mounting hardware, closed RTT and any accessories that sit above the shell.

The Kalbarri Gen 2 is listed at 13.8 cm, the Kalbarri Lite Gen 2 at 11.6 cm and the Jervis at 28.5 cm when folded. These product dimensions do not give the final FJ Cruiser height. Add the exact rack height and measure the completed vehicle for car parks, garages, ferry access, low branches and storage.

Total Rooftop Weight

Use this calculation:

For an illustrative example only, a 73 kg RTT plus a 32 kg rack plus 5 kg of mounting hardware equals 110 kg before other roof accessories are added. This is not an FJ Cruiser limit or a fitment approval; it simply shows why the complete system needs to be calculated.

Occupants and Camping Equipment

Roof load is only part of payload. Passengers, water, food, recovery equipment, fuel and luggage also affect total vehicle mass.

What Makes a Rooftop Tent Suitable for a Toyota FJ Cruiser?

A suitable FJ Cruiser RTT balances complete weight, mounting compatibility, sleeping space, packed height, clearance and intended use. No single format is right for every owner.

Weight and Low Profile

A lighter tent reduces the amount of roof capacity used by the tent itself, but the rack and mounting equipment still count. A lower packed profile can make everyday driving, wind planning and garage access easier. It does not remove the effect of a raised centre of mass or make an overloaded vehicle safe.

Sleeping Space

Compare the internal dimensions and mattress size with the occupants who will actually use the tent. A couple may prioritise a lower packed footprint, while a small family may value a wider mattress or more headroom. More space can also mean more weight, height or setup complexity.

Hard-Shell Construction

A hard-shell RTT can suit an FJ Cruiser owner who wants a contained packed shape and a repeatable setup routine. The shell, hinges, gas struts, rails and base all contribute to the product weight. Inspect the shell and mounting system after rough travel, particularly on corrugated roads.

Setup, Pack-Up and Everyday Driving

Frequent-stop touring favours a tent that can be opened and closed without a lengthy campsite routine. Owners who use the FJ Cruiser as a daily vehicle should also consider the packed height, aerodynamic drag, wind noise and whether the tent will remain installed between trips.

Weather and Off-Road Use

Waterproof ratings, fabric construction, shell design, ventilation and rainfly coverage are useful product comparison points. They do not guarantee performance in every storm or installation condition. Off-road use also depends on the rack’s off-road rating, speed restrictions, mounting security and the condition of the vehicle roof.

SAN HIMA Kalbarri Gen 2 for Toyota FJ Cruiser

The SAN HIMA Kalbarri Gen 2 can be considered by FJ Cruiser owners who want a hard-shell RTT with a low packed profile and larger listed internal footprint. Match it to the exact rack and complete load plan.

Why the Kalbarri Gen 2 May Suit an FJ Cruiser

The Kalbarri Gen 2 may suit an FJ Cruiser owner who values a low closed profile and a larger listed sleeping area. Its 13.8 cm height helps with vehicle-height planning, while the 73 kg or 78.5 kg product weight must be combined with the rack and accessories. Confirm the 74.5 cm rail spacing and treat the listed 100 kg crossbar figure as product-side information, not a Toyota roof rating.

SAN HIMA Kalbarri Lite Gen 2 for Toyota FJ Cruiser

The SAN HIMA Kalbarri Lite Gen 2 is a separate hard-shell option for FJ Cruiser owners who prioritise lower RTT weight and a very low packed profile. Its current Australian listing gives 60.5 kg without the ladder and 65.5 kg with the ladder attached. That lower tent weight may leave more room for an FJ Cruiser rack, mounting hardware and other touring equipment, but it does not establish vehicle compatibility by itself.

Why the Kalbarri Lite Gen 2 May Suit an FJ Cruiser

The Kalbarri Lite Gen 2 may suit an FJ Cruiser owner who wants to reduce the RTT’s contribution to the moving roof load while keeping a low 11.6 cm packed profile. Its 70 cm mounting-rail spacing must be compared with the selected rack, and its 212 × 131 cm footprint still needs to be checked against the roof platform, crossbars and other accessories.

The Lite version can be relevant to everyday FJ Cruiser use because its low packed height may help with garages, car parks and storage. It should not be described as automatically safer or universally compatible. The complete FJ Cruiser, rack, hardware, RTT and touring-load calculation still controls the decision.

See the SAN HIMA Kalbarri Lite Gen 2 Australian product page for the current product information before ordering.

SAN HIMA Jervis Hard Shell Rooftop Tent for Toyota FJ Cruiser

The SAN HIMA Jervis can be considered by FJ Cruiser owners who prioritise lower listed weight and a compact folded footprint. Its 28.5 cm folded profile is taller than the Kalbarri Gen 2, so measure the final vehicle height.

Why the Jervis May Suit an FJ Cruiser

The Jervis may suit an FJ Cruiser owner who prioritises a lower listed tent weight. At 56.5 kg, it uses less of the available roof-load calculation than the Kalbarri Gen 2 before the rack, brackets and accessories are added.

Its 160 × 121 cm folded footprint is more compact than the Kalbarri Gen 2, but its 28.5 cm folded height is greater. Measure the finished FJ Cruiser for daily driving and confirm the 63.5 cm mounting-rail spacing. No separate Jervis maximum crossbar load is identified in the current product specification block, so use the exact rack and mounting instructions.

SAN HIMA Kalbarri Gen 2 vs Lite Gen 2 vs Jervis for Toyota FJ Cruiser

These three SAN HIMA models address different FJ Cruiser priorities. Kalbarri Gen 2 emphasises lower profile and a larger listed internal footprint; Kalbarri Lite Gen 2 emphasises lower RTT weight and an even lower profile; Jervis emphasises lower RTT weight with a compact footprint but a taller folded shell. None is a universal winner.

Consider the Kalbarri Gen 2 if you prioritise a low packed profile, a larger listed internal footprint and hard-shell touring space.

Consider the Kalbarri Lite Gen 2 if you prioritise lower RTT weight, a very low packed profile and a lighter FJ Cruiser roof setup.

Consider the Jervis if you prioritise the lowest listed RTT weight among these three models and a compact folded footprint, while accepting a taller closed shell.

In every case, the final decision depends on the exact roof rack, mounting rails, complete moving roof load, overall height and intended road conditions.

Toyota FJ Cruiser Rooftop Tent Setup

A rooftop tent installation should follow the vehicle, rack and RTT manufacturers’ instructions. The following is a high-level planning sequence, not a substitute for the supplied installation manual.

1. Check the vehicle and rack specifications. Confirm the exact FJ Cruiser configuration, rack model, load guidance and mounting points.
2. Check crossbar spacing and rails. Compare the rack locations with the selected RTT rails: 74.5 cm for Kalbarri Gen 2, 70 cm for Kalbarri Lite Gen 2 or 63.5 cm for Jervis.
3. Position the RTT. Keep the tent within the approved support areas and allow for ladder, door, antenna, awning and sunroof clearance.
4. Install the mounting hardware. Use the supplied or approved hardware and follow the relevant tightening sequence.
5. Check clearances. Inspect the packed shell, rear doors, roof accessories, ladder and nearby bodywork.
6. Measure overall height. Record the highest point of the completed FJ Cruiser and RTT setup.
7. Recheck fasteners. Inspect for movement, rubbing, loose hardware or unusual noise after a short drive.
8. Confirm load considerations before driving. Include the rack, RTT, brackets and other attached equipment in the moving-load calculation.

If the rails do not align or the hardware does not suit the rack, pause installation and ask SAN HIMA or the rack manufacturer for a supported solution.

Toyota FJ Cruiser Camping and Overlanding Scenarios

Weekend Camping

For short trips, any of the three RTTs can keep bedding off the FJ Cruiser’s rear seats. Kalbarri Lite Gen 2 may suit owners balancing lower weight and low profile; Kalbarri Gen 2 may suit more internal space; Jervis may suit the lowest listed tent weight.

Road Trips and Everyday Driving

Consider packed height, wind exposure, fuel use, parking access and whether the tent remains installed between trips. A lower product weight does not necessarily mean a lower installed height.

Overlanding and Off-Road Camping

Water, recovery gear, tools, fuel and food make the complete load calculation important. Off-road travel also requires rack rigidity, secure hardware, vibration checks and an applicable off-road rating.

Couple and Small-Family Camping

Couples may prioritise lower weight or a larger sleeping layout. Small families should compare Kalbarri Gen 2 at 200 × 131 × 148 cm, Lite Gen 2 at 207 × 117 × 144 cm and Jervis at 211 × 156 × 105 cm, then consider occupants and payload.

Toyota FJ Cruiser Rooftop Tent Fitment Checklist

• ☐ Vehicle roof-load guidance verified for the exact FJ Cruiser
• ☐ Roof rack capacity verified for the exact rack and mounting configuration
• ☐ Dynamic load checked
• ☐ Static load checked
• ☐ Off-road rating or restrictions checked where applicable
• ☐ Crossbar spacing checked
• ☐ RTT mounting rails checked
• ☐ Mounting hardware confirmed
• ☐ Total rooftop weight calculated
• ☐ Vehicle height measured
• ☐ Occupant and camping-equipment load considered
• ☐ Ladder, rear door, antenna, awning and roof clearance checked
• ☐ Fasteners rechecked after the first short drive

If an item cannot be confirmed from current documentation or inspection, treat it as unresolved rather than using a forum estimate or generic FJ Cruiser claim.

Frequently Asked Questions

Can you put a rooftop tent on a Toyota FJ Cruiser?

Yes, when the exact FJ Cruiser, rack, hardware and RTT are compatible. Check vehicle guidance, ratings, complete moving load, rails and clearance.

What rooftop tent fits a Toyota FJ Cruiser?

The suitable RTT is one whose weight, dimensions, rails and hardware match the exact FJ Cruiser rack and vehicle. Compare the complete system, not tent weight alone. Match the selected SAN HIMA model to the rack before purchase.

Is the SAN HIMA Kalbarri Gen 2 suitable for an FJ Cruiser?

It may be suitable when the rack accepts its 74.5 cm rail spacing and the complete system meets the requirements. The Australian listing gives 73 kg without the ladder, 78.5 kg with it, 13.8 cm folded height and a 100 kg product crossbar specification. These do not replace Toyota or rack checks.

Is the SAN HIMA Kalbarri Lite Gen 2 suitable for an FJ Cruiser?

It may be suitable when the rack accepts its 70 cm rail spacing and the complete system meets the requirements. The Australian listing gives 60.5 kg without the ladder, 65.5 kg with it, a 212 × 131 × 11.6 cm folded size and a 207 × 117 × 144 cm internal size. Confirm the rack, hardware, height and load.

Is the SAN HIMA Jervis suitable for an FJ Cruiser?

It may be suitable when the rack accepts its 63.5 cm rail spacing and the complete system meets the requirements. The Australian listing gives 56.5 kg, a 160 × 121 × 28.5 cm folded size and a 213 × 160 × 111 cm unfolded size. Confirm the rack, hardware, height and load.

What is the difference between the Kalbarri Gen 2, Lite Gen 2 and Jervis?

Kalbarri Gen 2 has the lower packed profile and larger listed internal footprint; Lite Gen 2 has lower weight and an 11.6 cm profile; Jervis has the lowest listed weight but a taller 28.5 cm folded shell. Their rail spacing also differs: 74.5 cm, 70 cm and 63.5 cm respectively.

How much does the SAN HIMA Kalbarri Gen 2 weigh?

The Australian SAN HIMA listing gives the Kalbarri Gen 2 a weight of 73 kg with the ladder removed and 78.5 kg with the ladder attached. Add the rack, mounting hardware and other attached roof equipment when calculating the complete moving roof load.

How much does the SAN HIMA Kalbarri Lite Gen 2 weigh?

The Australian SAN HIMA listing gives the Kalbarri Lite Gen 2 a weight of 60.5 kg with the ladder removed and 65.5 kg with the ladder attached. Add the rack, hardware and other roof equipment before comparing the total with FJ Cruiser and rack guidance.

How much does the SAN HIMA Jervis weigh?

The current Australian SAN HIMA listing gives the Jervis a product weight of 56.5 kg. Add the rack, hardware and other roof equipment before comparing the total with FJ Cruiser and rack guidance.

What roof rack do I need for an FJ Cruiser rooftop tent?

You need a rack or platform designed for the exact FJ Cruiser configuration, suitable for RTT mounting and rated for the intended conditions. Check dynamic, static and off-road guidance, rack weight, bar spacing, rail alignment and hardware.

What is dynamic roof load?

Dynamic roof load is the load carried while the vehicle is moving. For an FJ Cruiser RTT setup, it may include the tent, rack, crossbars, mounting brackets, rails and other attached roof equipment. It is separate from the stationary load at camp.

What is static roof load?

Static roof load is the load supported while the vehicle is stationary. It may include the open RTT, occupants, bedding and rack system, depending on the relevant instructions. Static capacity must not be used as a substitute for the vehicle’s dynamic driving limit.

Is a hard-shell rooftop tent practical for an FJ Cruiser?

A hard-shell RTT can be practical when its weight, height, mounting system and clearance suit the FJ Cruiser build. It may simplify opening and provide a contained packed shape, but it still needs load, rack and hardware checks.

Conclusion

A Toyota FJ Cruiser rooftop tent can be a practical addition for Australian camping, touring and overlanding when the complete vehicle system is assessed correctly.

Start with the exact FJ Cruiser documentation and roof configuration. Confirm the rack, load guidance, rail spacing, total rooftop weight, final height and all relevant clearances.

Kalbarri Gen 2 may suit lower-profile, larger-footprint priorities; Lite Gen 2 may suit lower weight and low profile; Jervis may suit the lowest listed tent weight. None is automatically compatible with every FJ Cruiser.

The final decision should be based on the complete FJ Cruiser + rack + hardware + rooftop tent + occupants + camping equipment system.

---

Sources

• Toyota Australia FJ Cruiser Owner’s Manual archive — Australian GSJ15R model information and applicable build period.
• Toyota 2013 FJ Cruiser owner resources — owner-manual access for the FJ Cruiser.
• Rhino-Rack FJ Cruiser Pioneer 6 fitting chart — example of configuration-specific load and fitment guidance.
• Offroad Animal Scout FJ Cruiser roof rack — example of product-specific vehicle, rack and off-road ratings.
• SAN HIMA Kalbarri Gen 2 Australian product page — current product specifications.
• SAN HIMA Kalbarri Lite Gen 2 Australian product page — current product specifications.
• SAN HIMA Jervis Australian product page — current product specifications.

Important: Recheck current Toyota, rack and SAN HIMA documentation before purchase or installation.
