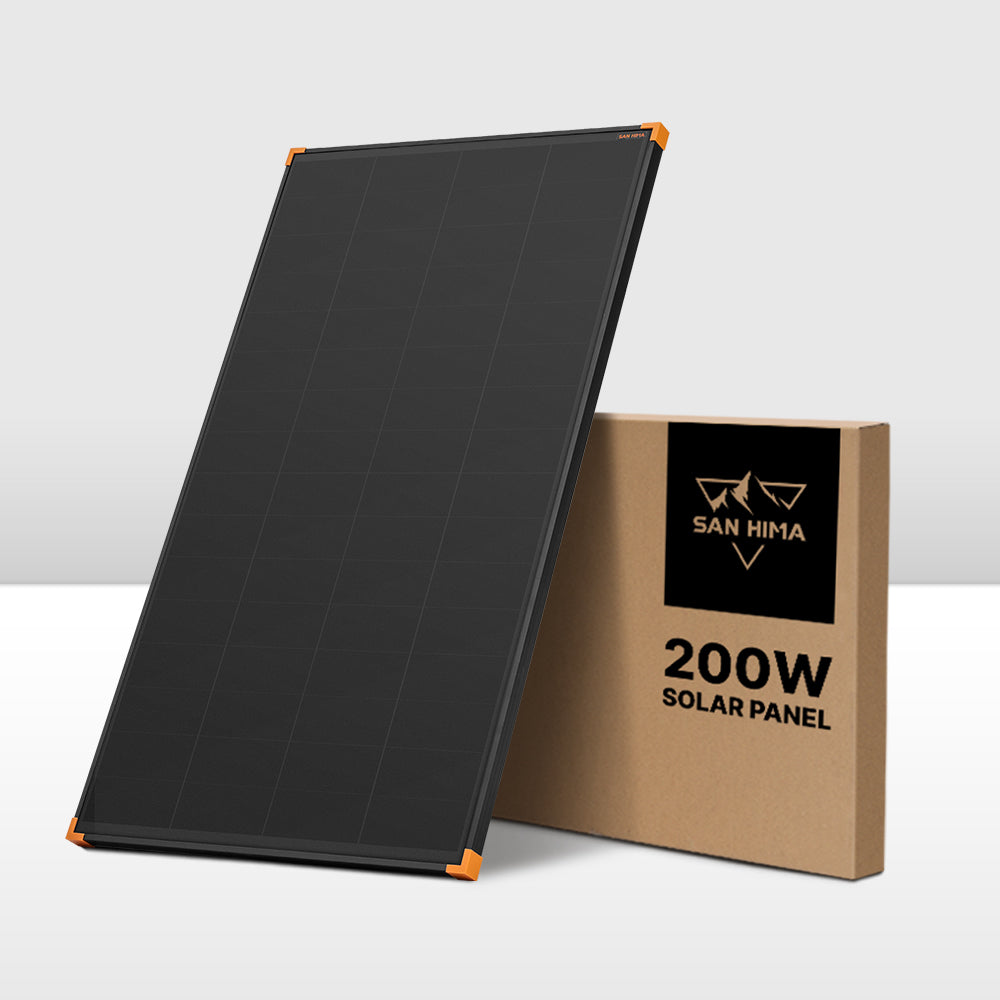

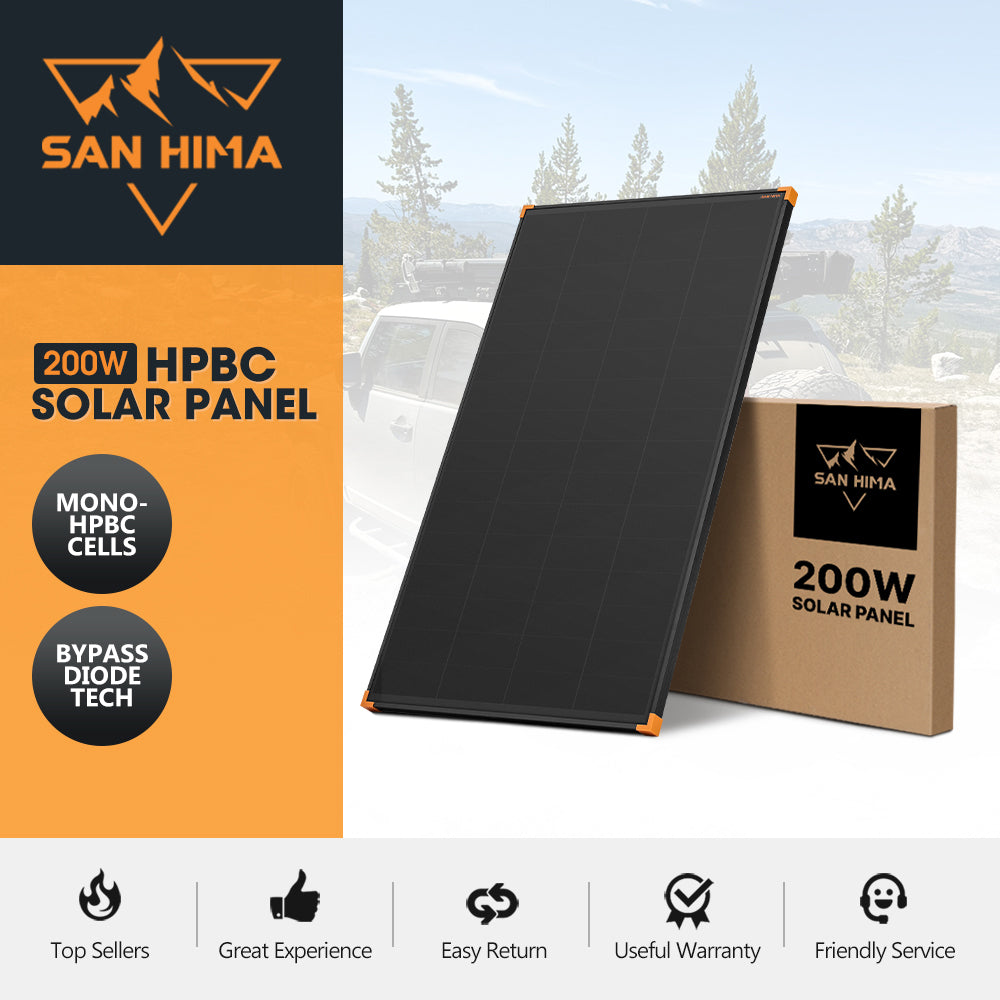

San Hima 200W Mono-HPBC Fixed Solar Panel Power Bypass Camping Caravan Battery

The first rays of dawn hit your campsite, and your gear comes alive—lights on, devices charge, batteries fill up. It all starts with San Hima HPBC solar panels. So you can take your time—lay out your trail plans, brew a fresh cup of coffee, or just sit in the quiet morning air before the day’s adventure starts.

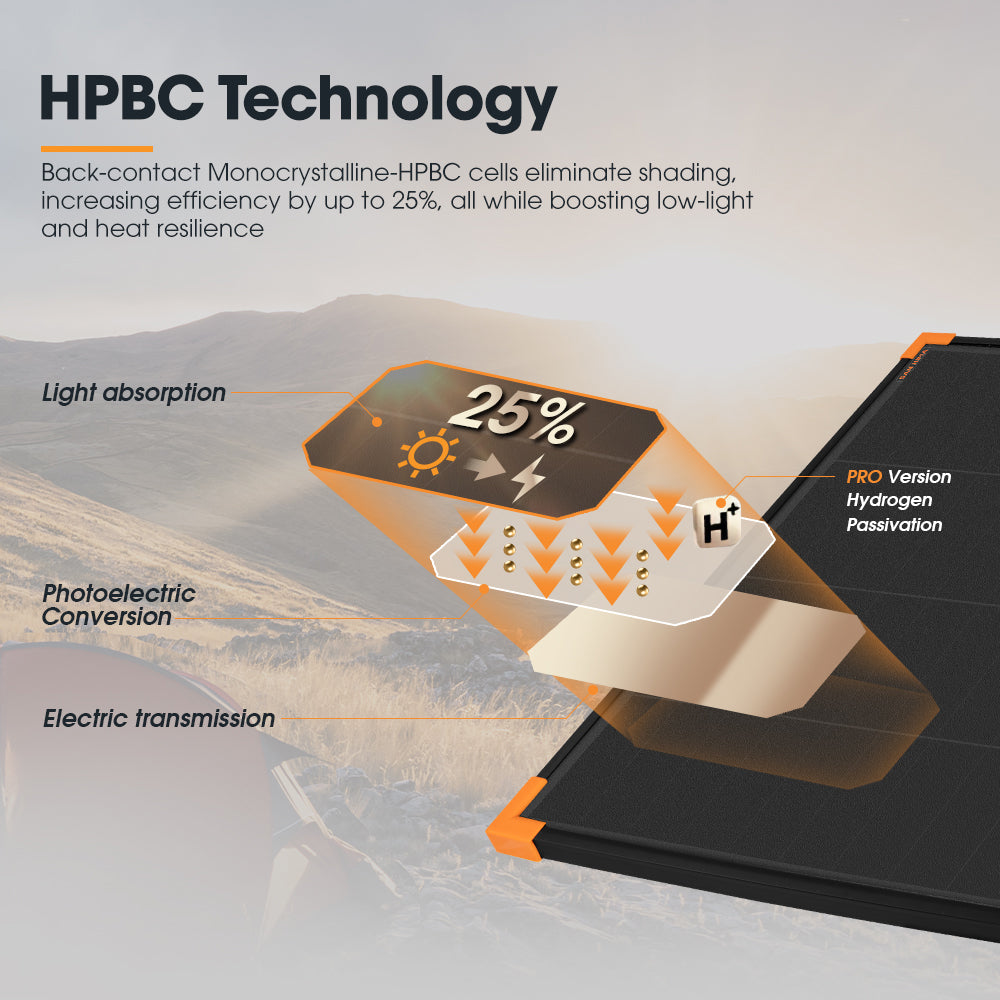

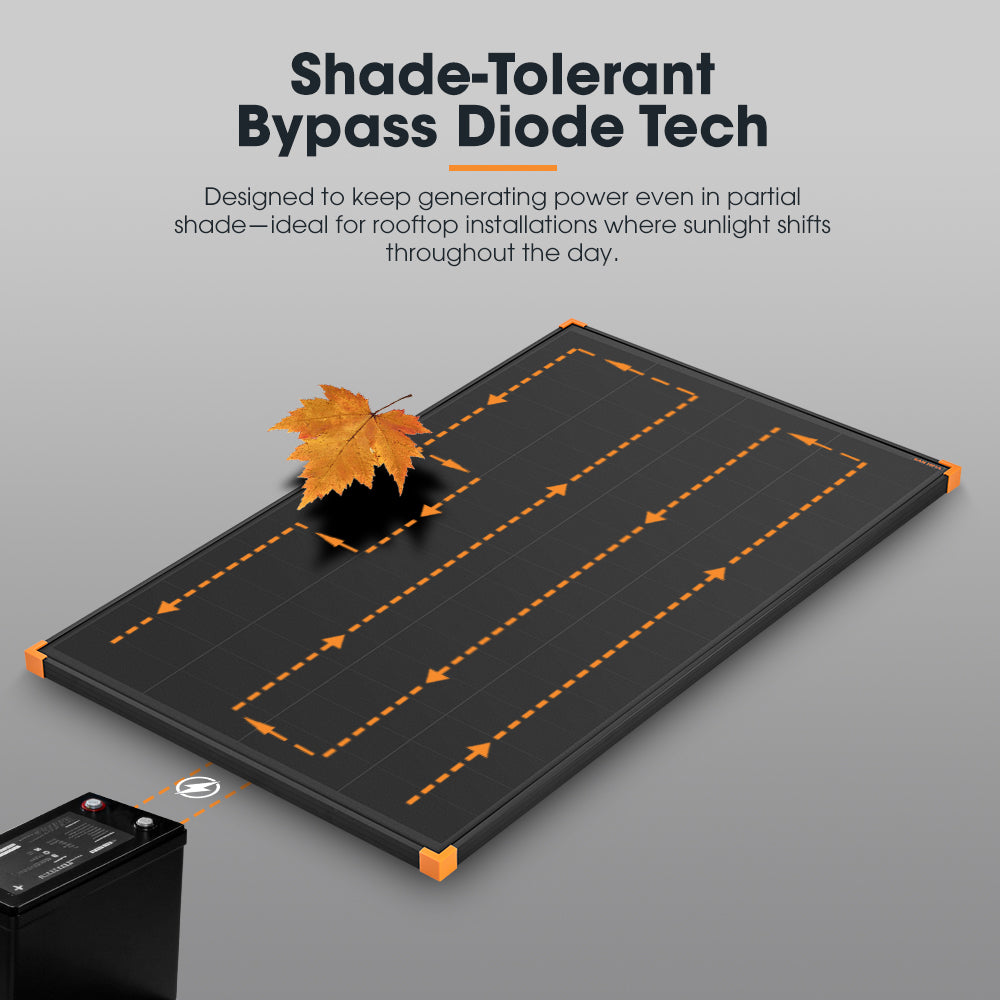

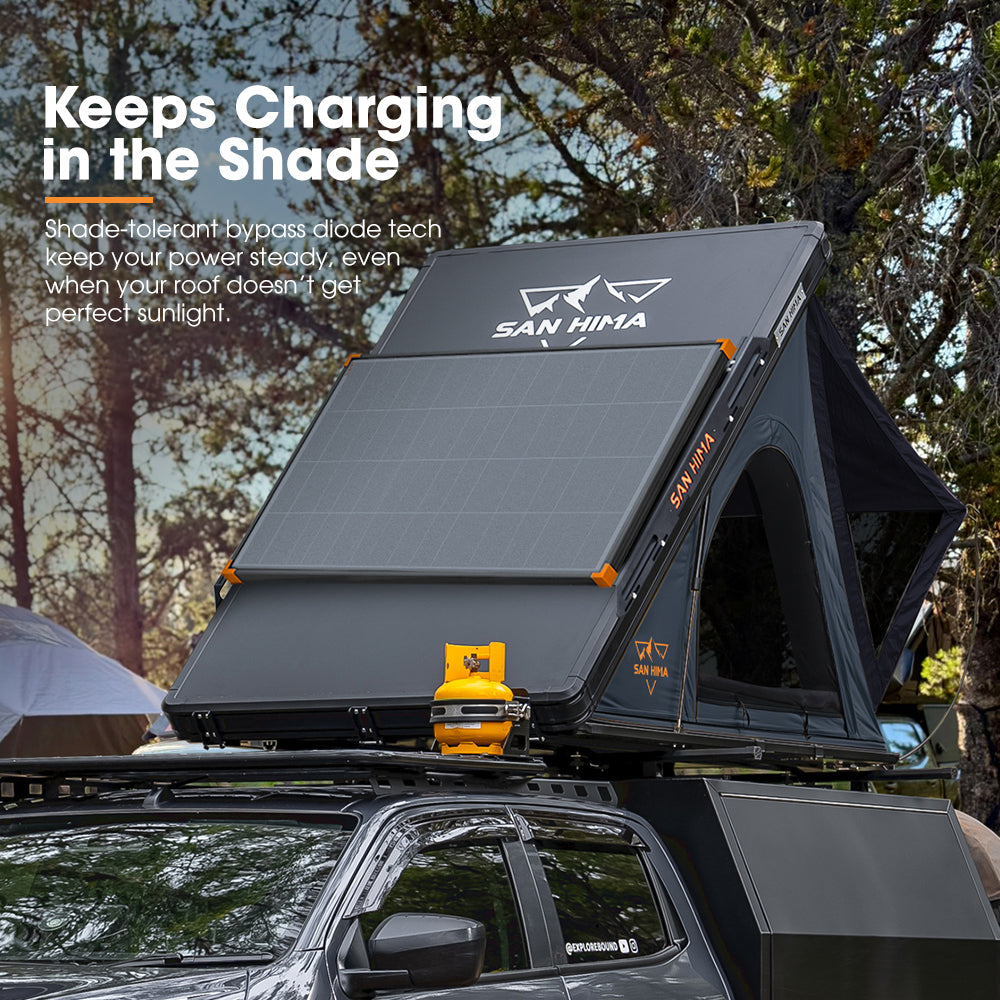

At the core, back-contact monocrystalline HPBC cells transfer every ray of sunlight, delivering up to 25% efficiency even in low-light or high-heat conditions. Shadows crossing the panel—from trees, roof racks, or the sun moving across the sky—are no problem. Bypass diodes reroute the current, keeping power steady. Flexible enough for off-grid setups, you can connect up to four panels in series or parallel to keep batteries and power stations charged. And with IP68 protection, rain and dust won’t slow you down. From highways to hidden trails or lakeside campsites, San Hima HPBC fixed solar panels make sure your adventure stays powered, reliable, and effortless.<br /><b style='margin-top: 15px; display: block;'>Features</b><ul><li>HPBC Technology: Back-contact Monocrystalline-HPBC cells eliminate shading, increasing efficiency by up to 25%, all while boosting low-light and heat resilience</li><li>Shade-Tolerant Bypass Diode Tech: Designed to keep generating power even in partial shade—ideal for rooftop installations where sunlight shifts throughout the day.</li><li>Series or Parallel Configurations: Connect up to 4 panels in series or parallel for more power—perfect for those bigger off-grid setups.</li><li>Up to 16.67A Output: With rigorous testing, this 200W HPBC fixed solar panel delivers up to 16.67A of charge at 12V for consistent, reliable performance.</li><li>IP-68 Protection: Fully waterproof and dustproof, rated IP68, this solar panel keeps performing in harsh weather, whether it’s pouring rain or dusty conditions.</li><li>Built Tough: A 3.2mm anti-reflective tempered glass provides impact resistance and maximizes light capture, while the reinforced aluminum frame adds strength.</li><li>Corner Reinforcement: Corner protectors add an extra layer of defense against impacts and shocks, safeguarding your panel from accidental drops or harsh forces.</li><li>Just the Right Size: At 1,250 x 760 x 30 mm, it fits snugly on the roof of your UTE, trailer, van, RV, or boat—no need to worry about extra space, it’s a smooth fit.</li><li>Simple Setup: With MC4 connectors and full compatibility with San Hima solar charge controllers, connecting to power stations or batteries is quick and easy.</li><li>Sleek & Stylish: Featuring an all-black design, this panel complements your roof rack and vehicle setup with a modern, clean look that adds to your overall aesthetic.</li></ul>

<table border="0">
<tbody>
<tr>
<td>Solar Cell Type:</td><td>Monocrystalline-HPBC</td>
</tr>
<tr>
<td>Maximum Power:</td><td>200W</td>
</tr>
<tr>
<td>Open Circuit Voltage (VOC):</td><td>23.68V</td>
</tr>
<tr>
<td>Short Circuit Current (ISC):</td><td>11.34A</td>
</tr>
<tr>
<td>Max Power Voltage (VMP):</td><td>18.61V</td>
</tr>
<tr>
<td>Max Power Current (IMP):</td><td>10.75A</td>
</tr>
<tr>
<td>Module Efficiency:</td><td>Up to 25%</td>
</tr>
<tr>
<td>Maximum System Voltage:</td><td>1000V</td>
</tr>
<tr>
<td>Maximum Series Fuse Rating:</td><td>20A</td>
</tr>
<tr>
<td>IP Rating:</td><td>IP-68</td>
</tr>
<tr>
<td>Operating Temperature:</td><td>-40°C~85°C</td>
</tr>
<tr>
<td>Nominal Operating Cell Temerature (NOCT):</td><td>45±2℃</td>
</tr>
<tr>
<td>Max Series/Parallel Connections:</td><td>4S/4P</td>
</tr>
<tr>
<td>Power Tolerance:</td><td>±3%</td>
</tr>
<tr>
<td>Output Tolerance:</td><td>±3%</td>
</tr>
<tr>
<td>Front:</td><td>Tempered Glass</td>
</tr>
<tr>
<td>Frame:</td><td>Aluminium</td>
</tr>
<tr>

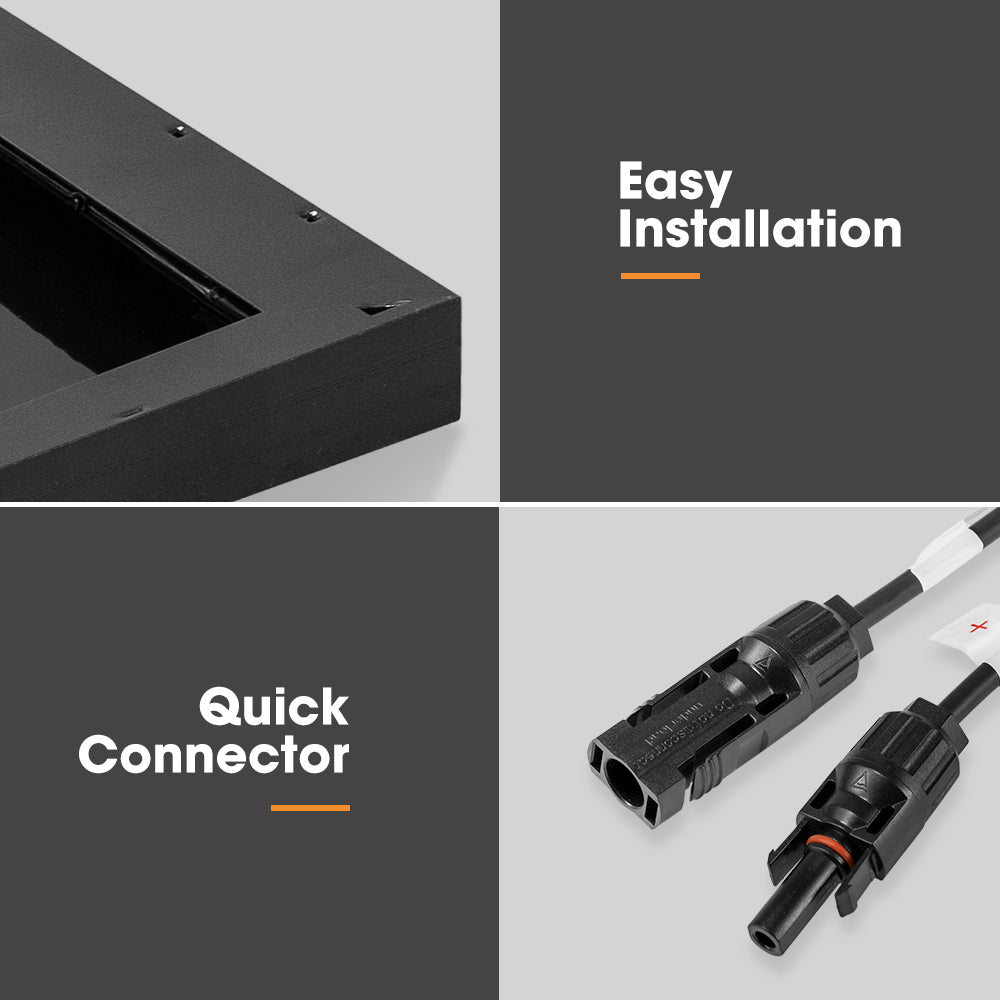

<td>Connectors:</td><td>MC4</td>
</tr>
<tr>

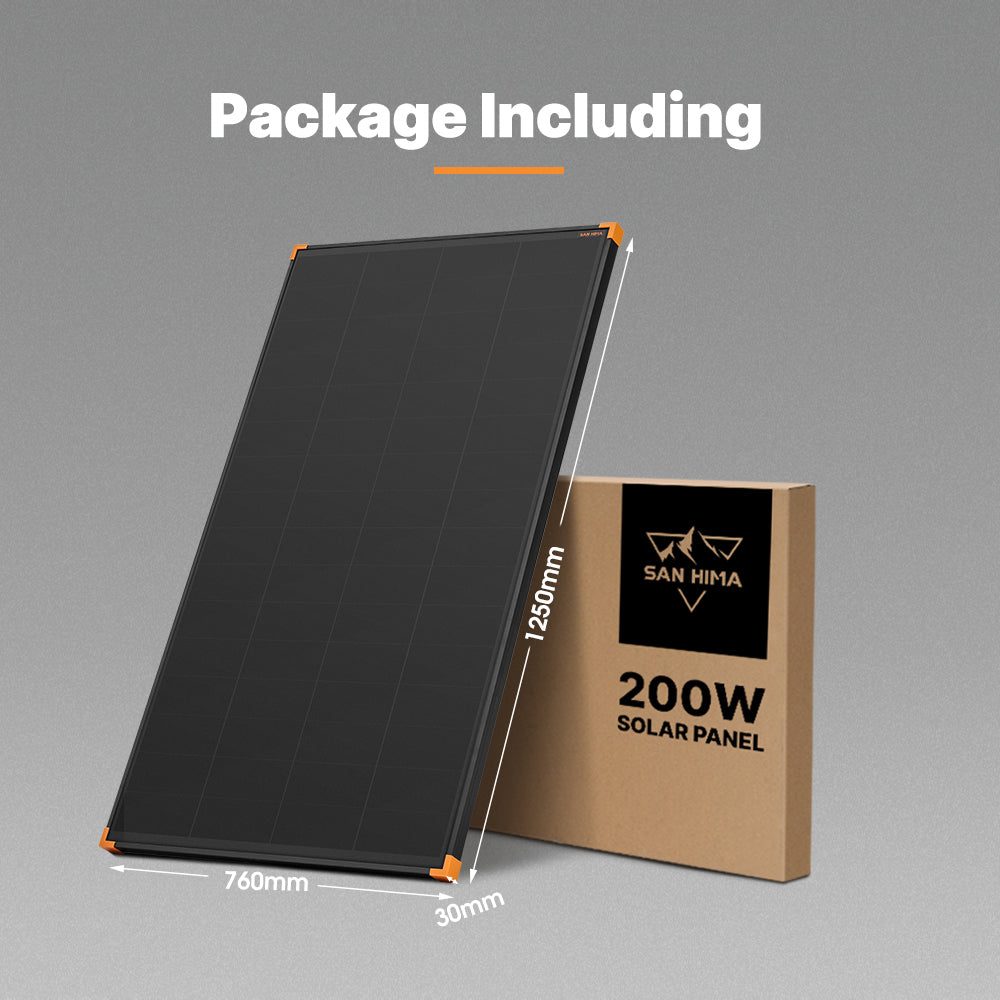

<td>Prackage Size:</td><td>127.8 x 78.1 x 5.8 cm(LxWxH)</td>
</tr>
<tr>
<td>Gross Weight:</td><td>12kg</td>
</tr>
</tbody>
</table>

<ul><li>1 x San Hima 200W HPBC Fixed Solar Panel</li><li>1 x User Manual</li></ul>5 Year Warranty<p><a href='https://cdn.shopify.com/s/files/1/0271/4340/5666/files/SH-FISED-BC120W_SH-FISED-BC200W_User_Manual_V1.0.pdf?v=1767685648' target='_blank'><img src='https://cdn.shopify.com/s/files/1/0271/4340/5666/files/01.png' style='max-width: 80px;' /></a></p>
