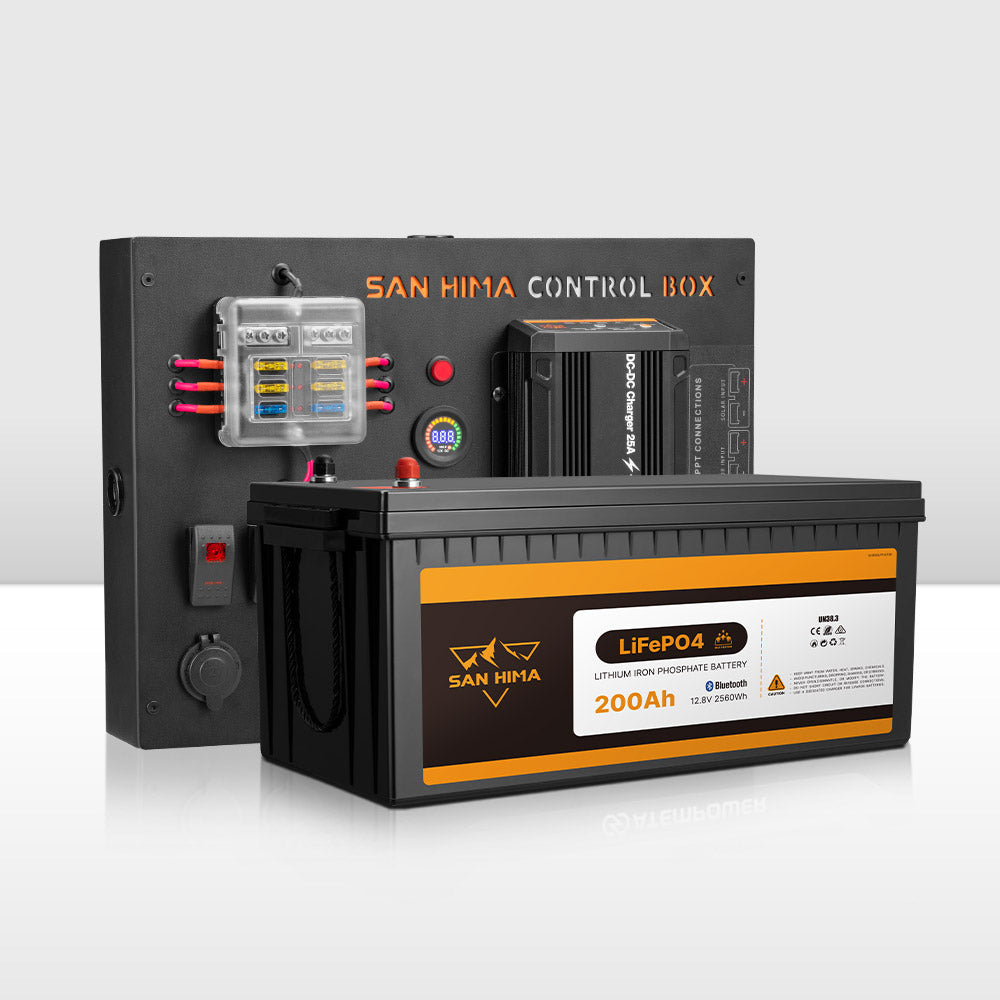

Tailored for 4WD van, canopy and DIY installations, the San Hima control box offers an upgraded control experience. With its design crafted to effortlessly manage all your 12V equipment, this versatile box also includes a convenient pre-installed 25Amp DC/DC charger, perfect for charging your auxiliary battery.

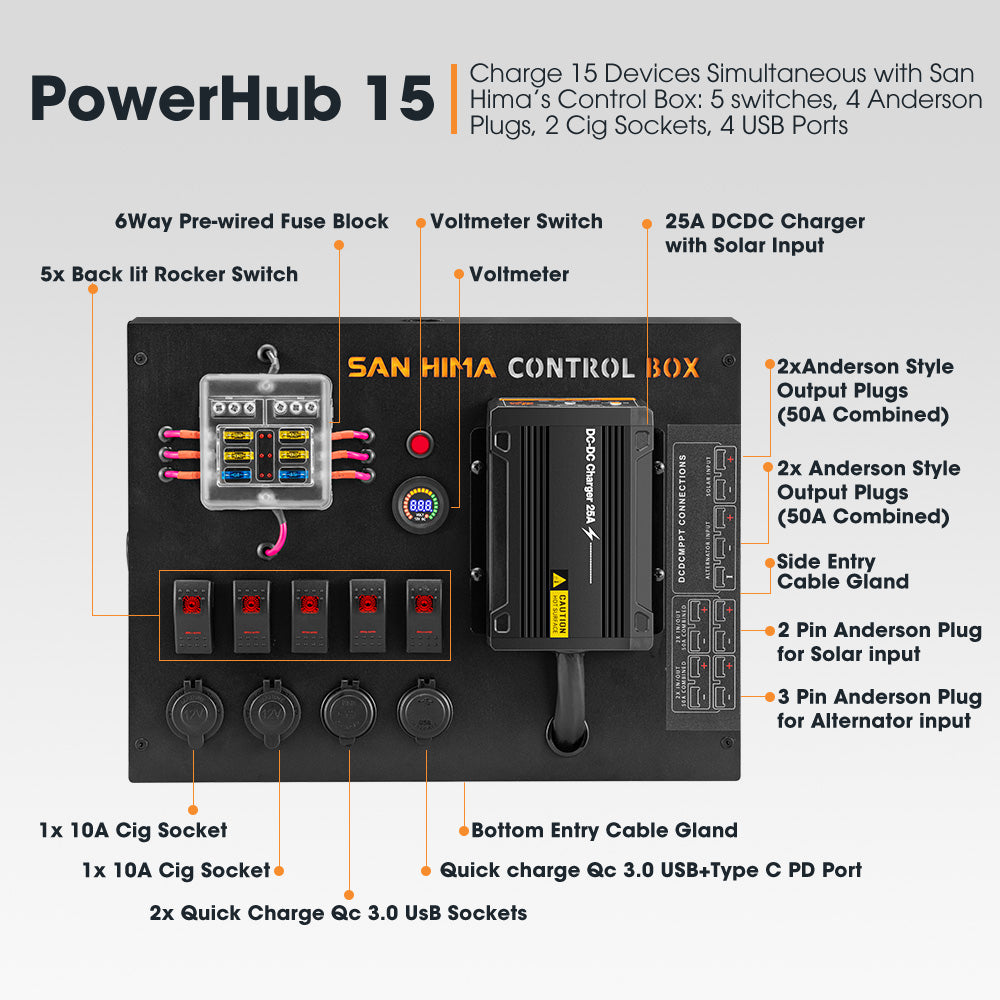

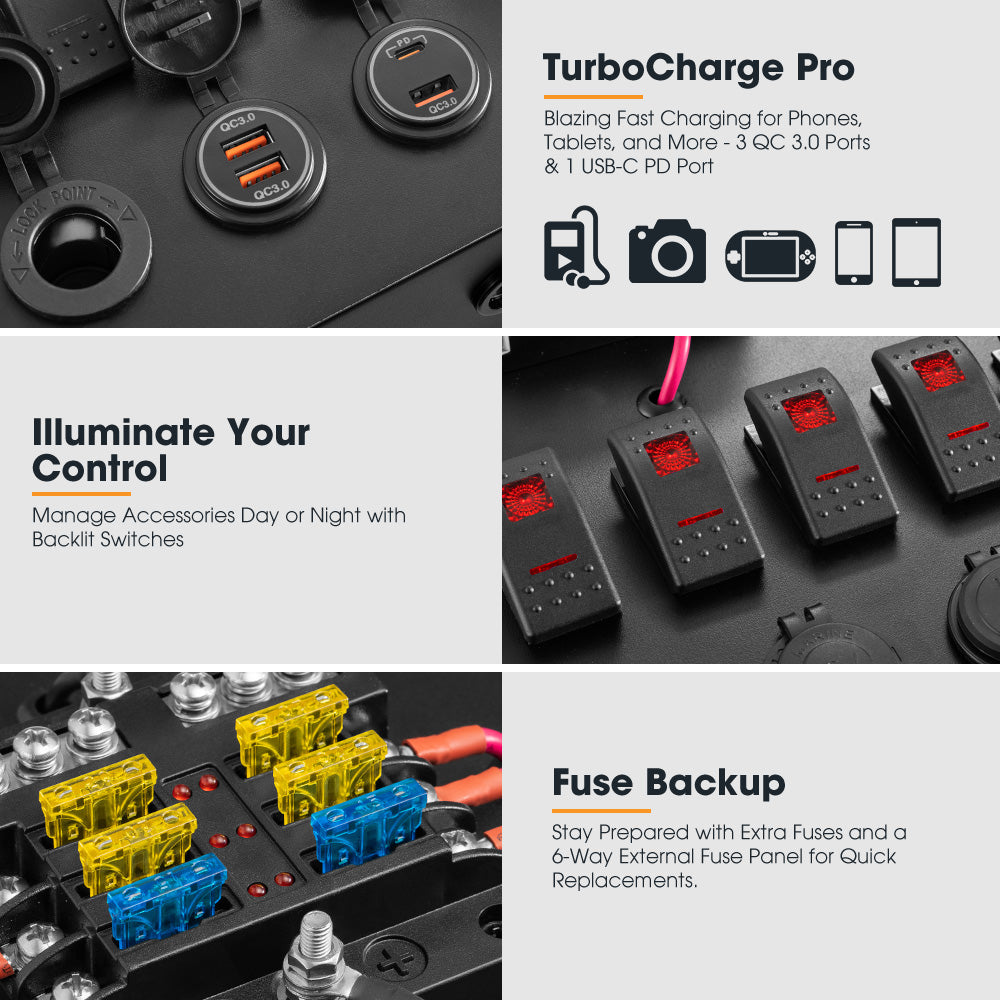

The control box energizes up to 15 devices concurrently, boasting 5 accessory switches, 4 USB ports, 4 Anderson-style plugs, and 2 Cig sockets. Experience rapid charging with 1 USB-C PD and 3 QC 3.0 ports (Quick Charge 3.0), while seamlessly managing all your accessories with backlit rocker switches, visible day and night. Plus, the convenient 6-way external fuse panel ensures swift fuse replacements whenever needed. With Lithium Mode preserving battery health and Solar Priority Mode optimizing energy, our control box supports fuel-efficient adventures. Elevate your control experience and upgrade your adventure with the San Hima control box.<br /><b style='margin-top: 15px; display: block;'>Features</b><ul><li>Automatic Self-Heating: Activates in low temperatures to maintain optimal working temperature, ensuring consistent output, efficiency, and extended lifespan.</li><li>Bluetooth Compatibility: Equipped with an app to monitor capacity, status, and temperature in real-time via Bluetooth, available on the App Store and Google Play.</li><li>6,000 Cycles: Powered by Grade A prismatic cells with higher energy density than cylindrical cells, it features a lifespan of 6,000 cycles, ensuring long-term reliability.</li><li>Flexible Configurations: Tailor your setup with options for 2s & 2p configurations, maximizing output potential for situations like power outages or hurricanes.</li><li>Powerhouse Performance: With a continuous discharge of 200A and a pulse discharge of 250A, our battery effortlessly powers fridge, air conditioner and kettle.</li><li>Smarter BMS: Upgraded for overvoltage, overcurrent, overdischarge, overcharge and overheat protection, minimizing cell degradation for safer operation.</li><li>Quick Recharge: Our smart LiFePO4 battery recharges faster with a maximum charging current of 100A, ensuring availability of power in time-sensitive situations.</li><li>Extended Usable Capacity: Our battery safely allows discharge to 80~90%, maximizing operational times compared to AGM batteries limited to 50% discharge.</li><li>Fire-Resistant Housing: Provides vertical burning resistance, reducing fire spread risks, especially in remote areas with delayed emergency responses.</li><li>Minimal Self-Discharge: Our LiFePO4 battery maintains minimal self-discharge, preserving charge for months in storage, ensuring reliable power whenever needed.</li></ul>
<table border="0">
<tbody>
<tr>
<td colspan="2">Battery</td>
</tr>
<tr>
<td>Cell Type:</td><td>Prismatic LiFePO4</td>
</tr>
<tr>
<td>Rated Capacity:</td><td>200Ah</td>
</tr>
<tr>
<td>Nominal Voltage:</td><td>12.8V</td>
</tr>
<tr>

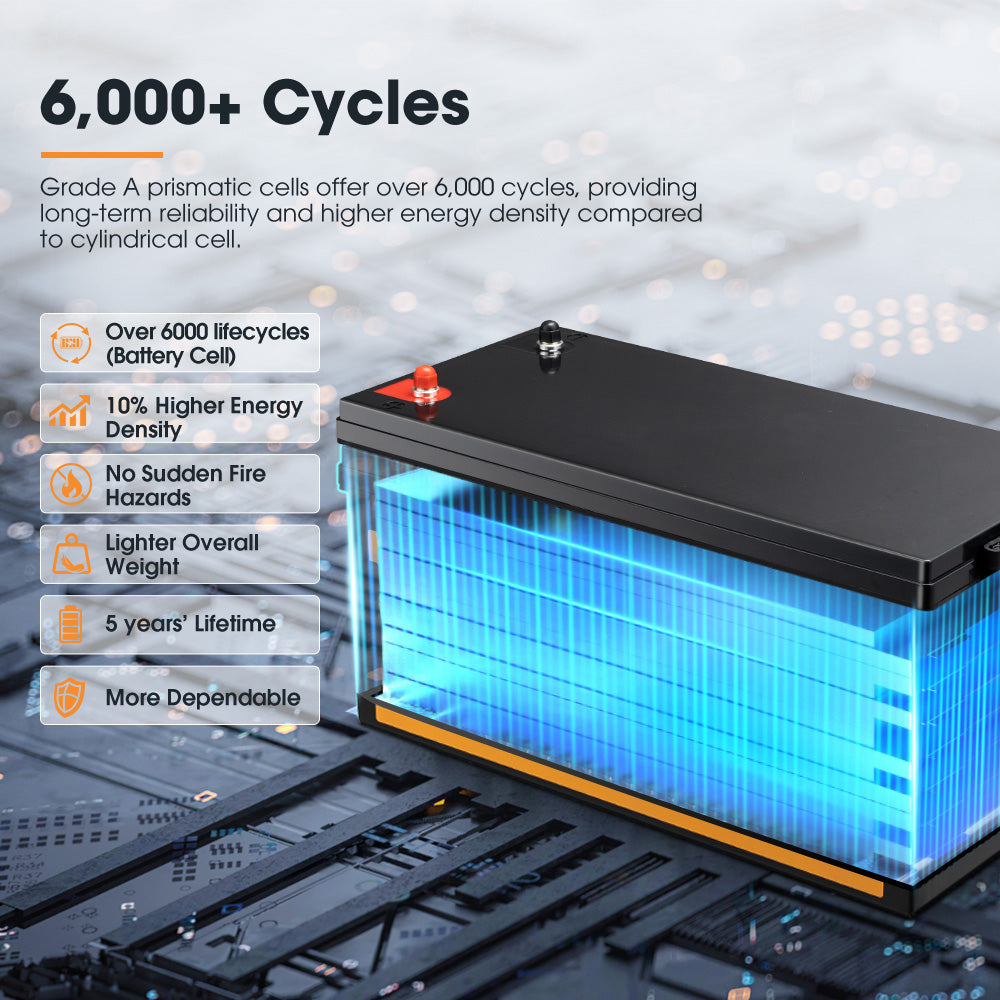

<td>Cycle Life:</td><td>6,000 (0.2c; DoD 80%)</td>
</tr>
<tr>
<td>Recommended Charge Current for Maximum Life:</td><td>40A</td>
</tr>
<tr>

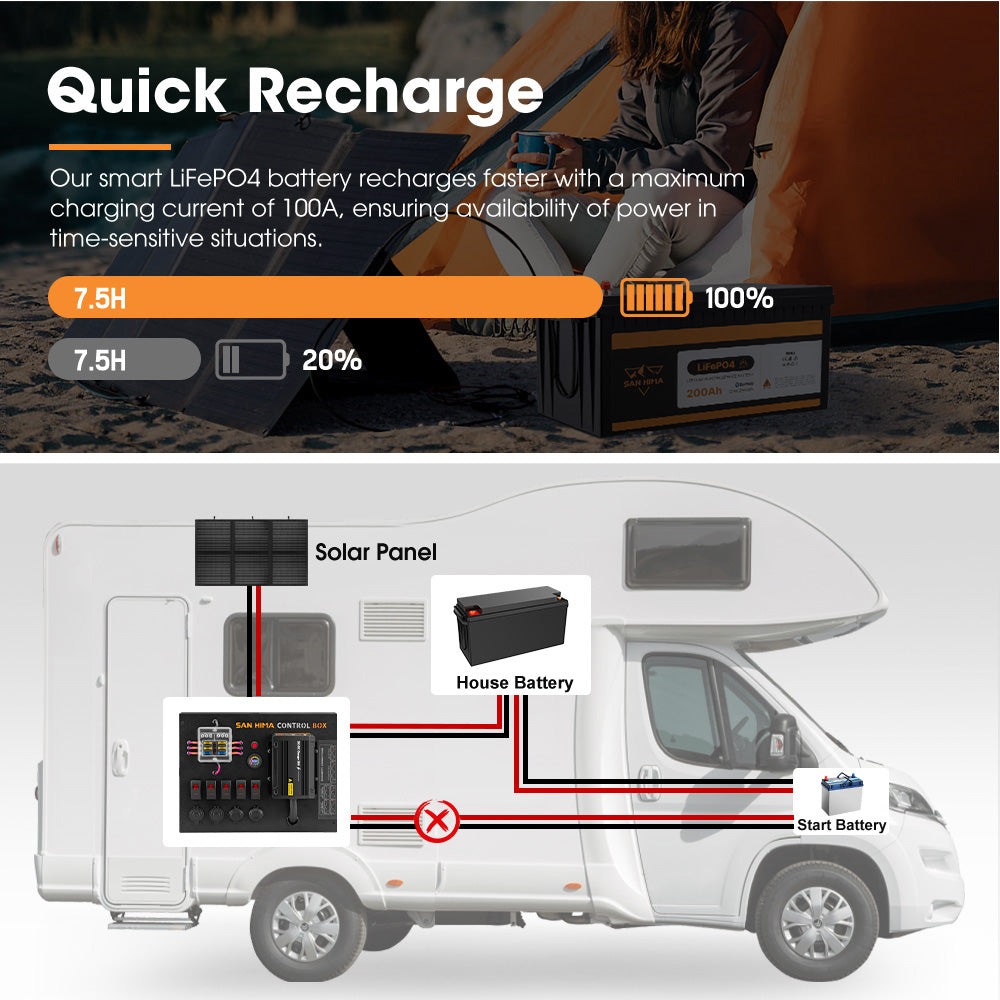

<td>Max. Continuous Charge Current:</td><td>100A</td>
</tr>
<tr>
<td>Max. Continuous Discharge Current:</td><td>200A</td>
</tr>
<tr>
<td>Max. Pulse Discharge Current (3s):</td><td>250A</td>
</tr>
<tr>
<td>Charge Cut-off Voltage:</td><td>14.4V</td>
</tr>
<tr>
<td>Discharge Cut-off Voltage:</td><td>10.8V</td>
</tr>
<tr>
<td>Standby (Float) Voltage:</td><td>10.8V~14.4V</td>
</tr>
<tr>
<td>Max. Modules in Series/Parallel Configuration:</td><td>2S/2P or 2S & 2P</td>
</tr>
<tr>
<td>Self-discharge (Per Month):</td><td><3%</td>
</tr>
<tr>
<td>Internal Resistance:</td><td>≤15mΩ</td>
</tr>
<tr>
<td>Operating Temperatures:</td><td>-20°C~55°C</td>
</tr>
<tr>
<td>Storage Temperatures:</td><td>-20°C~45°C</td>
</tr>
<tr>
<td>Self-heating Activation Temperature:</td><td> <0°C </td>
</tr>
<tr>
<td>Relative Humidity:</td><td>≤95RH</td>
</tr>
<tr>
<td>Certifications:</td><td>CE</td>
</tr>
<tr>
<td>Package Size:</td><td>555mm x 305mm x 255mm</td>
</tr>
<tr>
<td>Package Weight:</td><td>21.1KG</td>
</tr>
<tr>
<td colspan="2">Control Box</td>
</tr>
<tr>
<td>Construction:</td><td>Powder Coated Aluminum</td>
</tr>
<tr>
<td>Box Thickness:</td><td>2MM</td>
</tr>
<tr>
<td>Voltage:</td><td>12V/24V</td>
</tr>
<tr>
<td>Max Capacity:</td><td>150A</td>
</tr>
<tr>
<td colspan="2">Cable Size</td>
</tr>
<tr>
<td>Battery Connection Lead:</td><td>4AWG</td>
</tr>
<tr>
<td>DCDC Charger Connection:</td><td>10AWG</td>
</tr>
<tr>
<td>Anderson Plug Connection:</td><td>8AWG</td>
</tr>
<tr>
<td>Fuse Box Connection:</td><td>12AWG</td>
</tr>
<tr>
<td>Switch Connection:</td><td>12AWG</td>
</tr>
<tr>
<td>Cigarette and USB Socket Connection:</td><td>12AWG</td>
</tr>
<tr>
<td colspan="2">Fuse Size</td>
</tr>
<tr>
<td>2x Anderson Style Plugs:</td><td>50A</td>
</tr>
<tr>
<td>2x Anderson Style Plugs</td><td>50A</td>
</tr>
<tr>
<td>DCDC Connection</td><td>50A</td>
</tr>
<tr>
<td>Switch 1</td><td>20A</td>
</tr>
<tr>
<td>Switch 2</td><td>20A</td>
</tr>
<tr>
<td>Switch 3</td><td>20A</td>
</tr>
<tr>
<td>Switch 4 & 5</td><td>15A</td>
</tr>
<tr>
<td>Cigarette 1 & Cigarette 2</td><td>20A</td>
</tr>
<tr>
<td>3 QC3.0 USB+ Type C PD</td><td>15A</td>
</tr>
<tr>
<td colspan="2">USB</td>
</tr>
<tr>
<td>USB QC3.0 Rating</td><td>18W</td>
</tr>
<tr>
<td>USB Type C Rating</td><td>30W</td>
</tr>
<tr>
<td colspan="2">25AMP DCDC CHARGER SPECIFICATIONS</td>
</tr>
<tr>
<td>Input Voltage Range</td><td>9-32V</td>
</tr>
<tr>
<td>Max Input Current</td><td>25A</td>
</tr>
<tr>
<td>Minimum Auxiliary Battery Voltage</td><td>4V</td>
</tr>
<tr>
<td>Battery Type</td><td>Standard Lead Acid, Gel, AGM, Calcium &LiFePO4</td>
</tr>
<tr>
<td>Charging Type</td><td>3 Stages</td>
</tr>
<tr>
<td>Operating Temperature</td><td>-20℃～80℃</td>
</tr>
<tr>
<td>Package Size:</td><td>485mm(L) x 365mm(W) x 185mm(H)</td>
</tr>
<tr>
<td>Package Weight:</td><td>5.5Kg</td>
</tr>
</tbody>
</table>

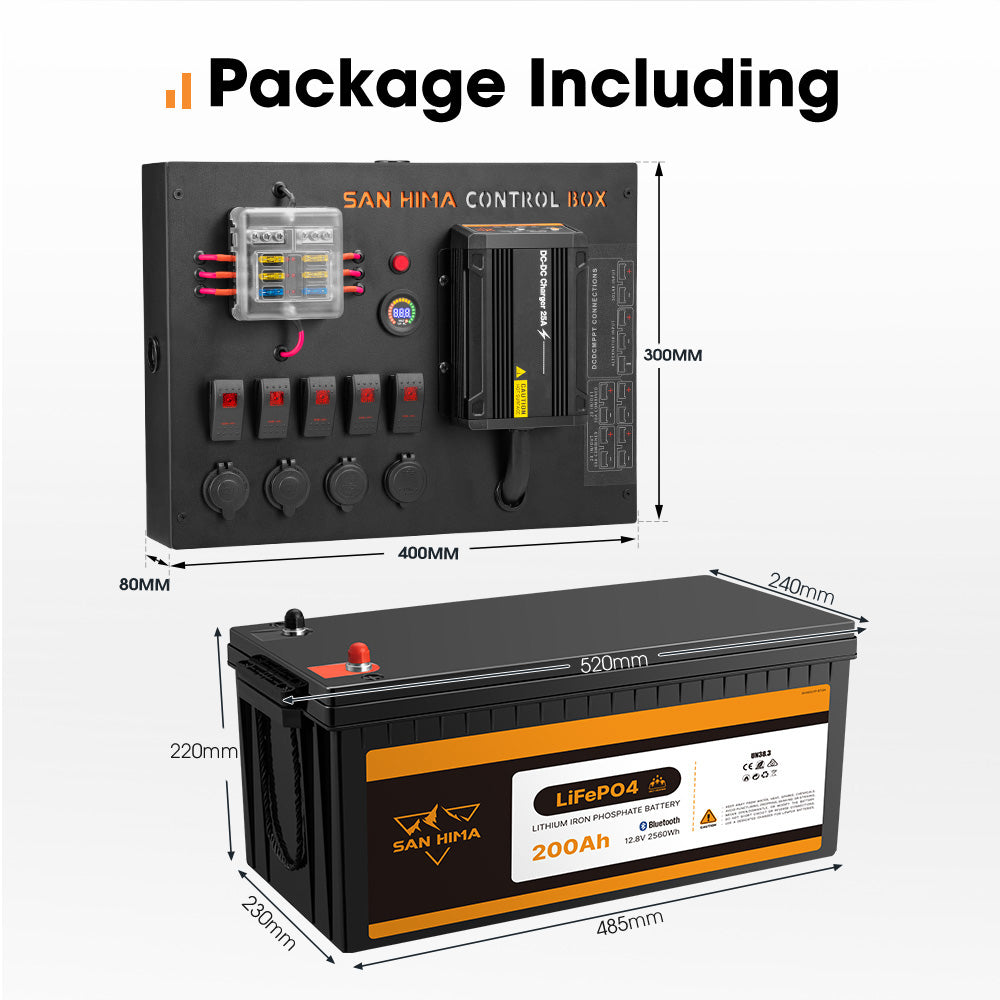

<ul><li>1 x San Hima 200Ah Smart LiFePO4 Battery</li><li>1 x SAN HIMA CONTROL BOX</li><li>1 x Accessory Kit</li><li>2 x User Manual</li></ul><p>1 Year Warranty For Control Box <br>5 Years Warranty For Battery</p><p><a href='https://cdn.shopify.com/s/files/1/0061/7775/1143/files/SH-LFP-100-BLE_SH-LFP-100-BLE-CC_SH-LFP-200-BLE_SH-LFP-200-BLE-CC_SH-LFP-300-BLE_User_Manual_V1.1.pdf?v=1721116578' target='_blank'><img src='https://cdn.shopify.com/s/files/1/0271/4340/5666/files/01.png' style='max-width: 80px;' /></a></p>
